Intelligent Quad cursor for easy CAD drawing

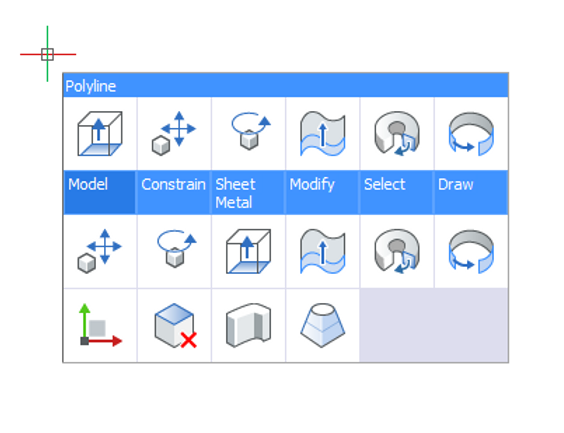

Speed up your workflow with the Quad™ cursor. With the redesigned context-sensitive cursor, easy CAD drawing is just a click away.

Copyright @2004 Whole Win Technology Ltd

2D Drafting

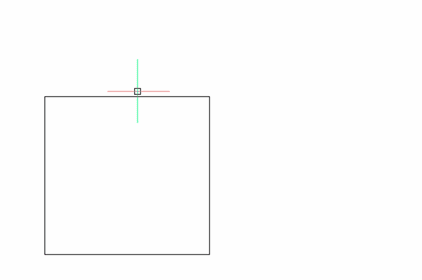

The intelligent Quad cursor is an alternative to grip editing entities. While grip glyphs accumulate clutter, the Quad cursor, with its compact size, keeps your screen clean. It does come with a rich set of editing operations. And it’s intelligent: the Quad cursor knows in how many dimensions (2D or 3D) you are drawing and immediately adapts to show commands you need.

3D Modeling

The Quad cursor intuitively adjusts to 3D workflows. Features such as extruding faces with just one click improve easy drawing in CAD. You can also manipulate solids using the Quad’s options, such as subtract and push/pull.

Hotkey Assistant

When edge and face selection modes are active, the new Hotkey Assistant displays options available. Cycle through them by tapping the Ctrl key.

Hotkey Assistant

When edge and face selection modes are active, the new Hotkey Assistant displays options available. Cycle through them by tapping the Ctrl key.
